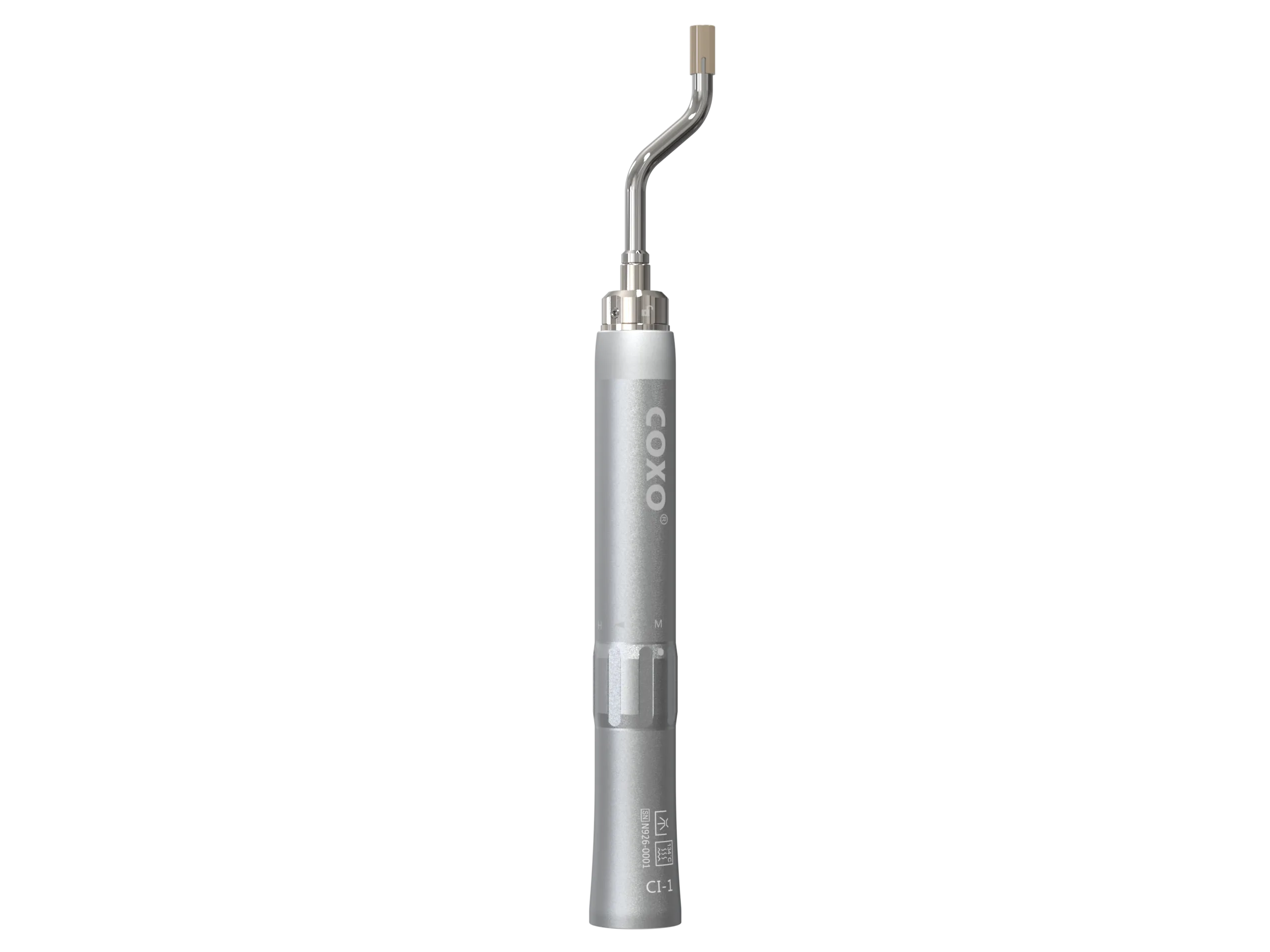

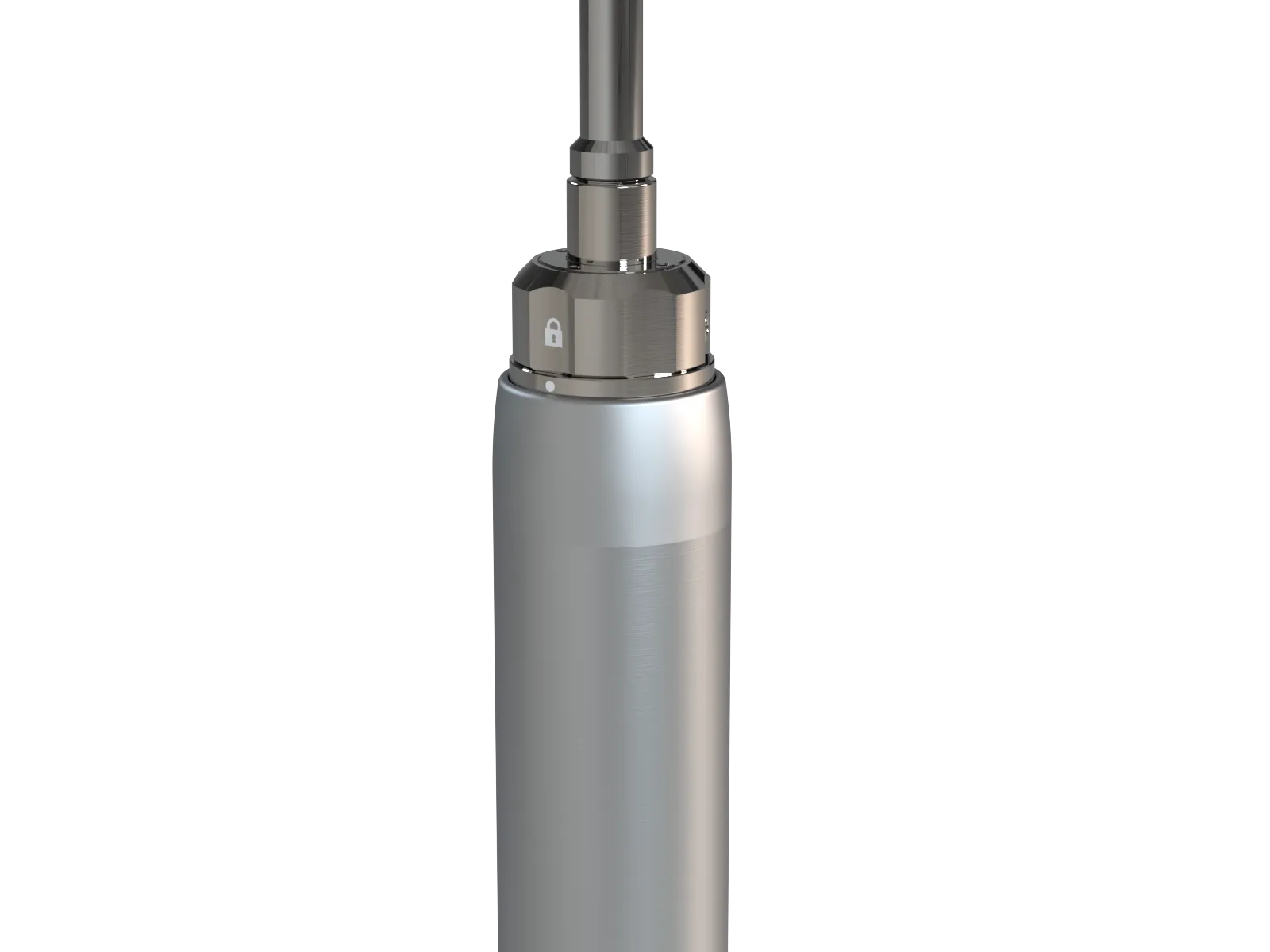

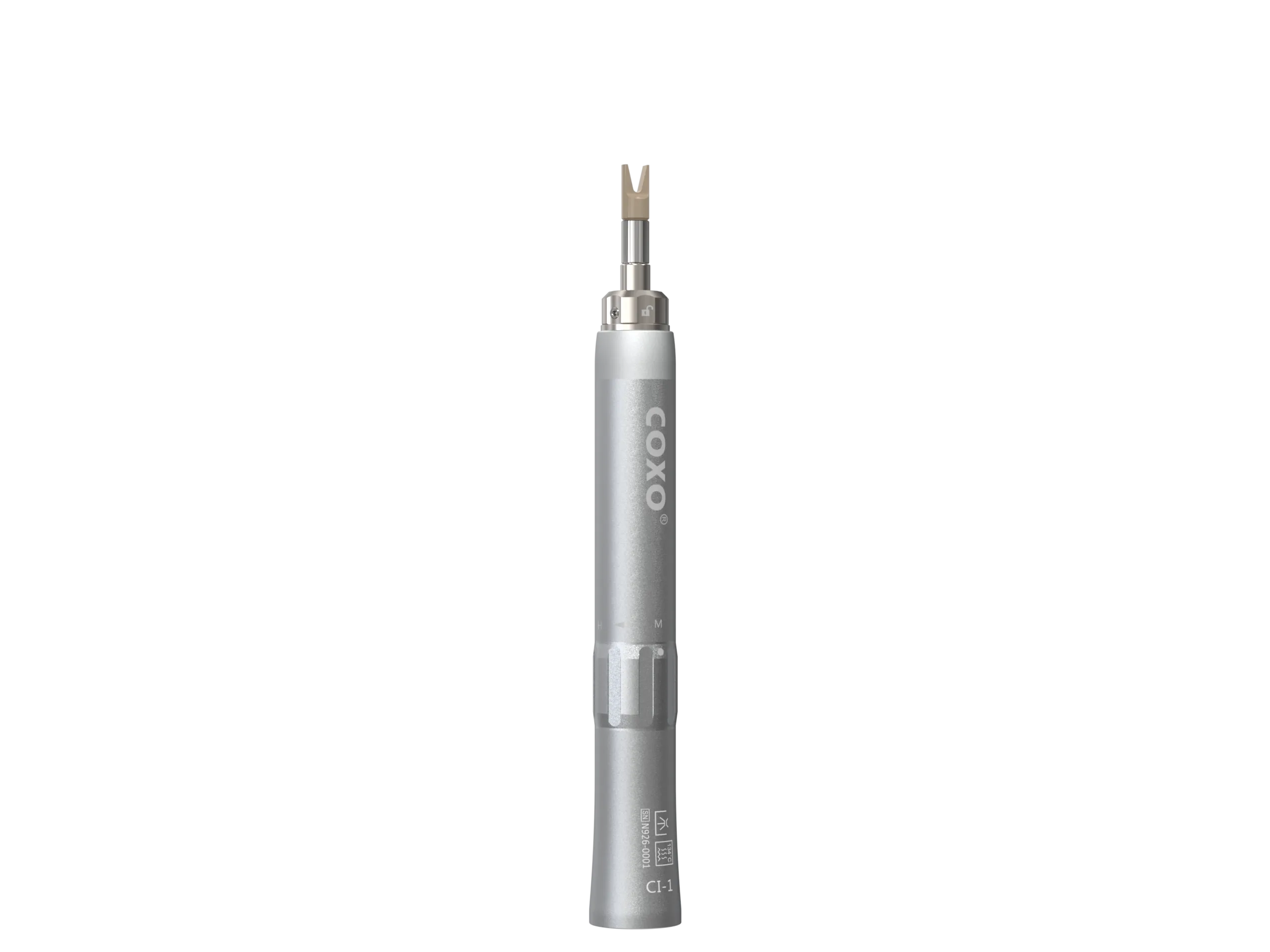

COXO CI-1 Dental abutment placer

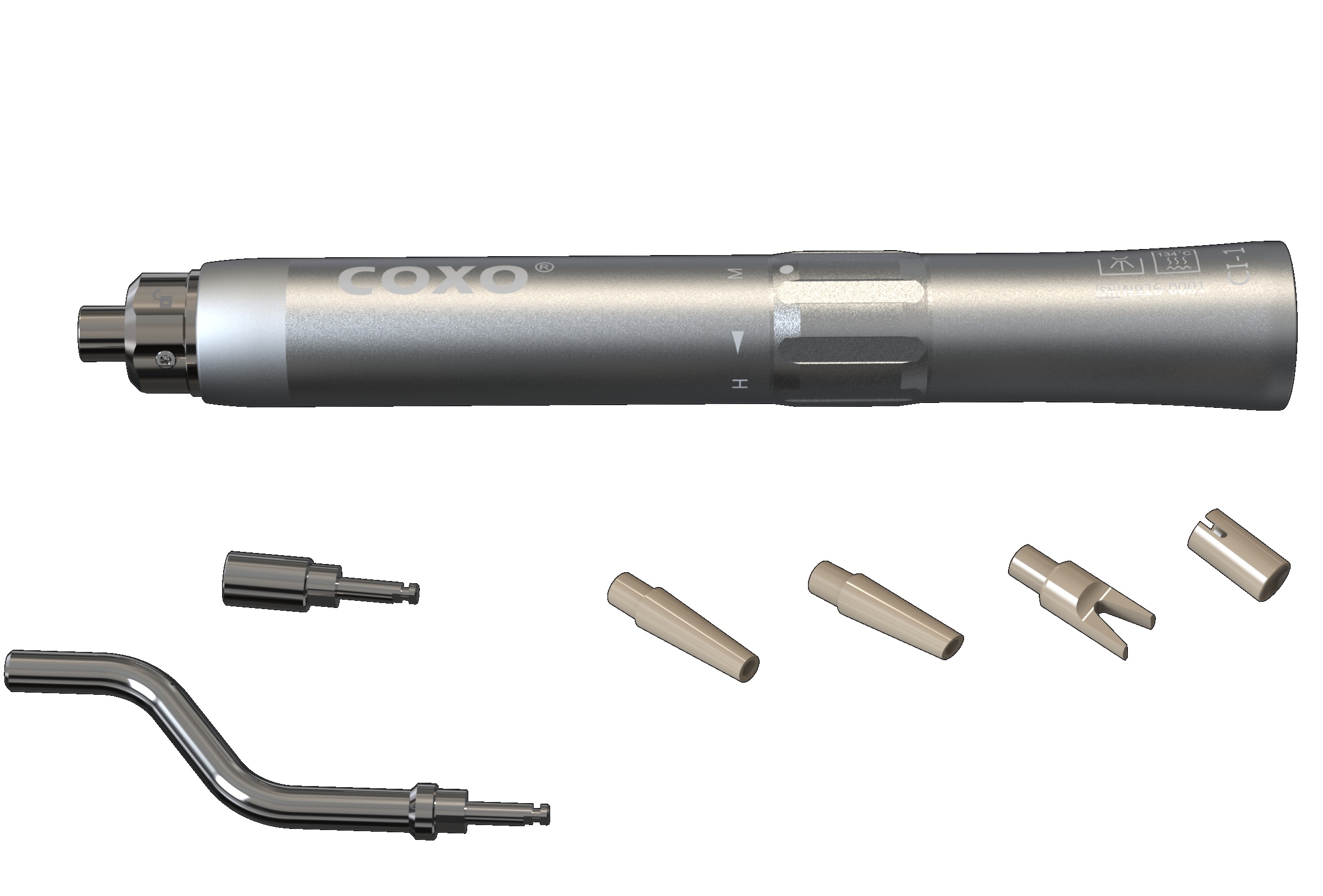

Structural components: Main unit, straight adapter rod, bent adapter rod, impact head
Length: 145mm
Shell length*diameter: 128mm*20mm
Head diameter * height: 9.2mm * 14.5mm
Weight: 120g
Recommended air pressure for pneumatic motors: 0.02~0.1MPa
Paired with motor output torque: 0.75N·cm
Matching motor speed: 12000rpm
Impact gears: Low, Medium, and High (3 gears)
Sterilization method: Autoclaving
Sterilization conditions: At 134℃ for at least 5 minutes; Maximum sterilization temperature: 137℃;
Operating temperature: +5℃ - +40℃;
Operating humidity: 20%-80%;
Storage temperature: -10℃ to +55℃
Storage humidity: ≤93%

1) Traditional manual tapping suffers from drawbacks such as difficulty in controlling force, inefficiency, and patient discomfort. Our product reduces the physical exertion of doctors, improving surgical efficiency and precision.
2) Amplitude is precisely controlled within 0.7mm, significantly reducing surgical risks and enhancing the patient's treatment experience.
3) Two different working heads are provided for anterior and posterior teeth, allowing for greater precision.
4) Three-level adjustable function meets the personalized treatment needs of different patients and bone conditions.
Impact Working Principle:
By connecting an electric/pneumatic motor, rotational energy is converted into spring potential energy, which is released when the clamp is raised to its highest point, pushing the parts to generate an impact.
